Beskrivelse

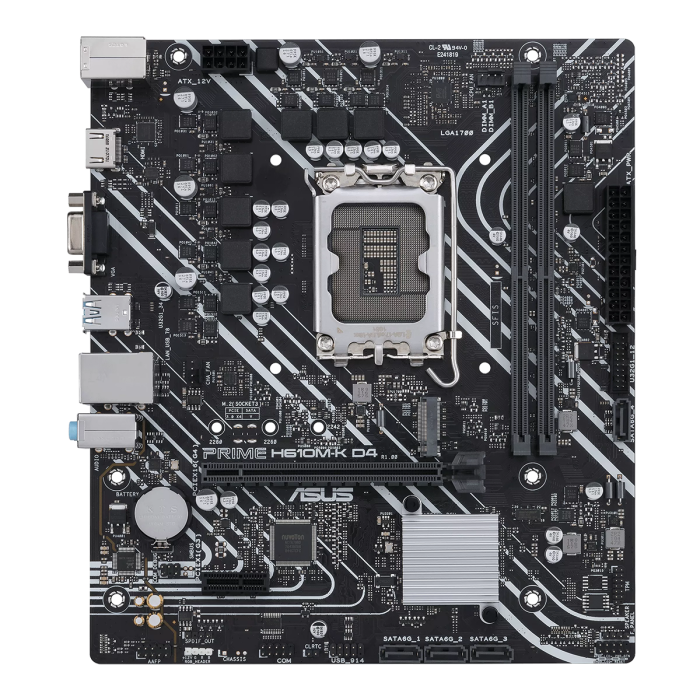

ASUS PRIME H610M-K D4 Læs mere om ASUS PRIME H610M-K D4 BundkortSpecifikationer
Generelt
Sokkel
LGA 1700
Formfaktor
M-ATX
Chipsæt
H610 (Intel 12+13th. gen)
Kompatible processorer
12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
WiFi
Nej
Antal RAM slots
2
RAM Teknologi
DDR4
RAM
Ram Bus Clock
3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Maks. RAM kapacitet
64 GB
Interface
Ekspansionsåbninger
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
1 x PCIe 3.0 x1 slot
Grænseflade (lagring)
1 x M.2 slot
4 x SATA 6Gb/s ports
4 x SATA 6Gb/s ports
Interne interfaces
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Interface
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Strømkontakter
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Misc.
Dybde
203
Bredde
234
Tilbehør
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User Guide
1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User Guide
